TYIIPLUS Adjustable Woodworking Framing Stud Layout Tool (Up to 30")

Build faster, measure less, and eliminate framing errors. Whether you are constructing wall frames, ladders, deck joists, or custom grid structures, this adjustable frame splice clamp is your ultimate positioning tool. Designed for both professional carpenters and DIY woodworking enthusiasts, it ensures precise, consistent spacing without the need for repetitive measuring and marking.

Key Features

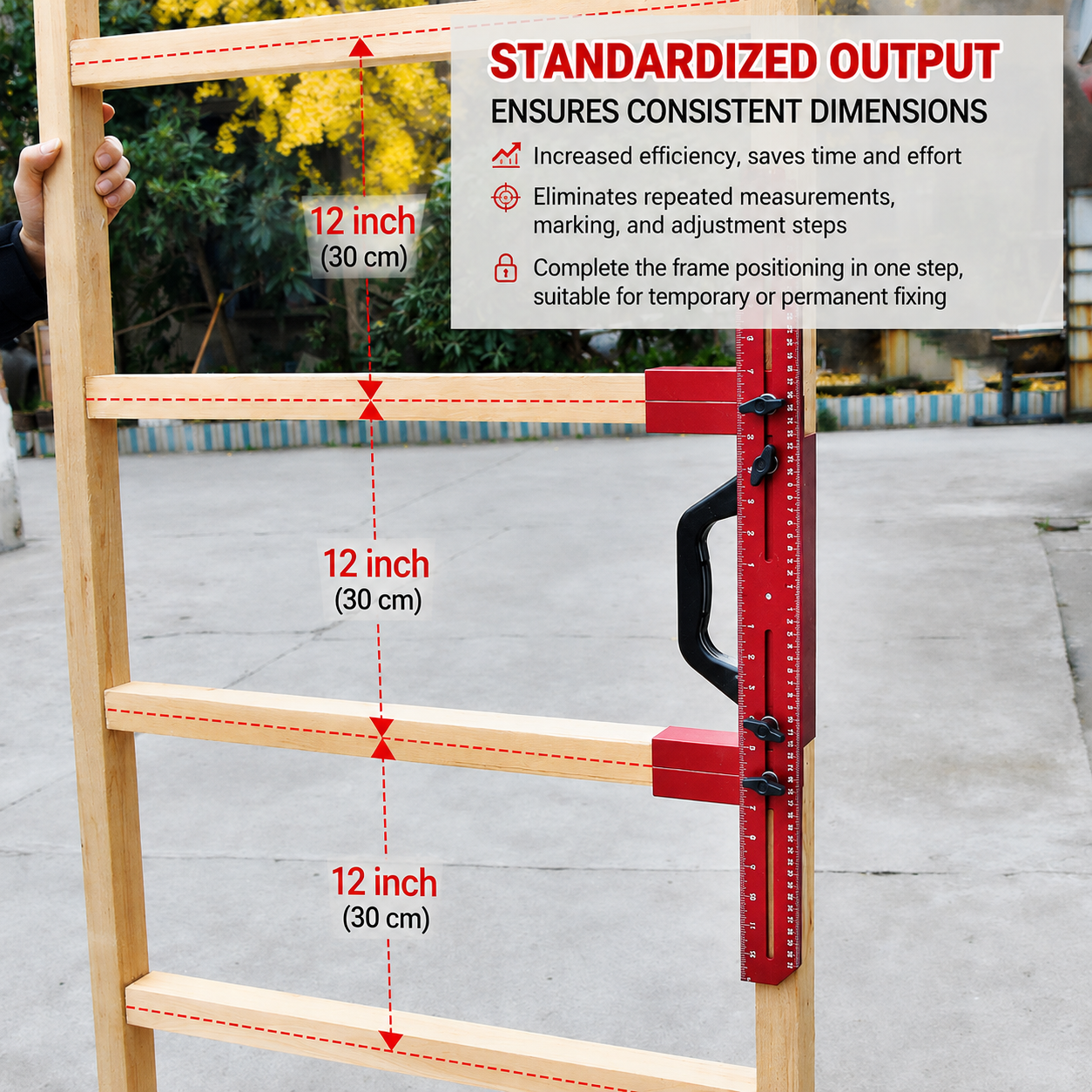

• Standardized Precision Output: Achieve perfect, repeatable spacing for every joint. Set your desired distance once (e.g., standard 12" or 16" on-center spacing) and complete your frame positioning in one swift step.

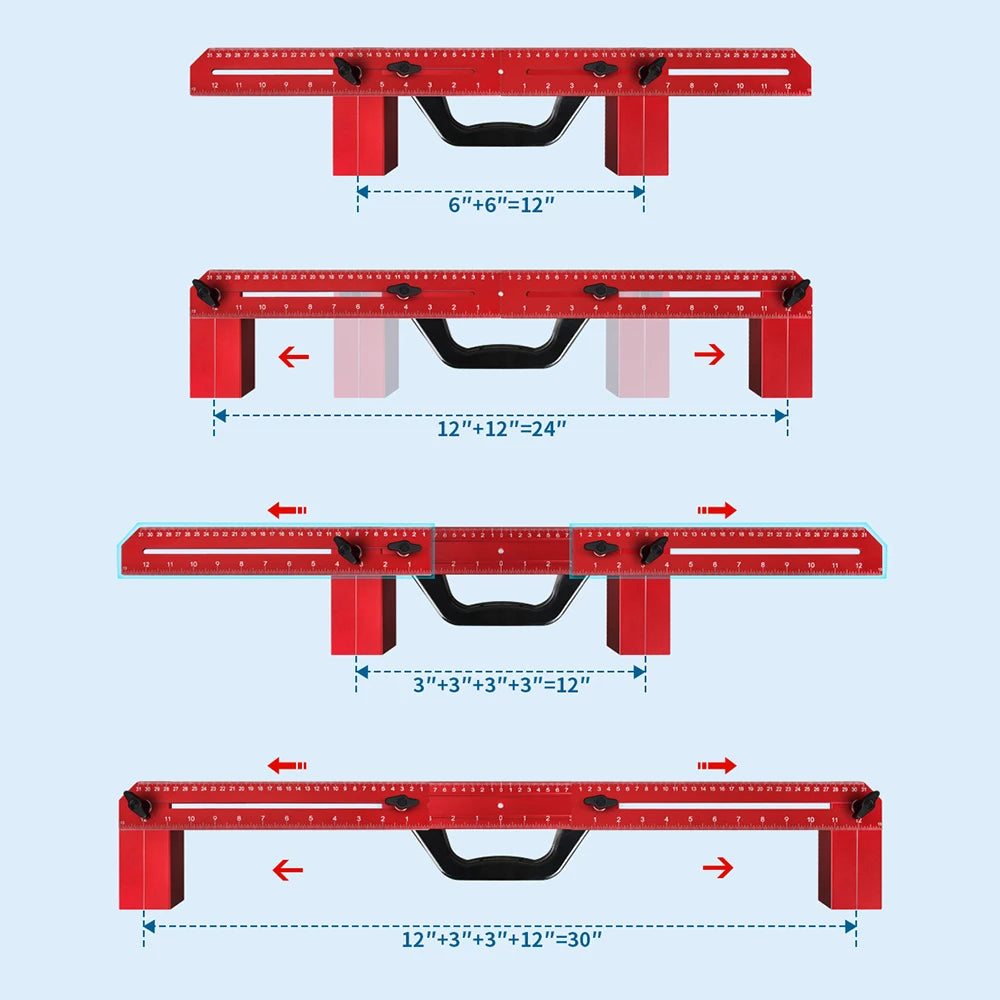

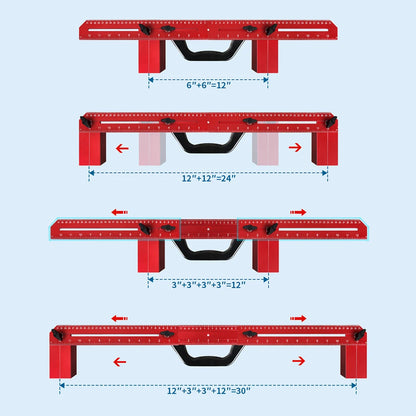

• Expandable Up to 30 Inches: The sliding clamp system allows for custom spacing from as tight as 6 inches all the way up to a 30-inch maximum range, accommodating a massive variety of project sizes.

• Perfect for Standard US Lumber: The clamp head slots measure 1.57 inches (40mm) wide, providing an ideal, secure fit for the 1.5-inch edge of standard dimensional lumber (such as 2x4s, 2x3s, or 2x2s).

• Detachable 2-in-1 Design: The tool features a modular construction. Remove the clamp heads and handle to use the heavy-duty base as a standalone dual-scale precision ruler.

• Dual-Scale Measurement: Features clear, high-contrast, laser-etched markings in both Imperial (Inches) and Metric (Centimeters) to suit any measurement preference.

• Ergonomic & Portable: Equipped with a comfortable, center-mounted grip handle, making it easy to maneuver and hold steady with one hand while operating a nail gun or drill with the other.

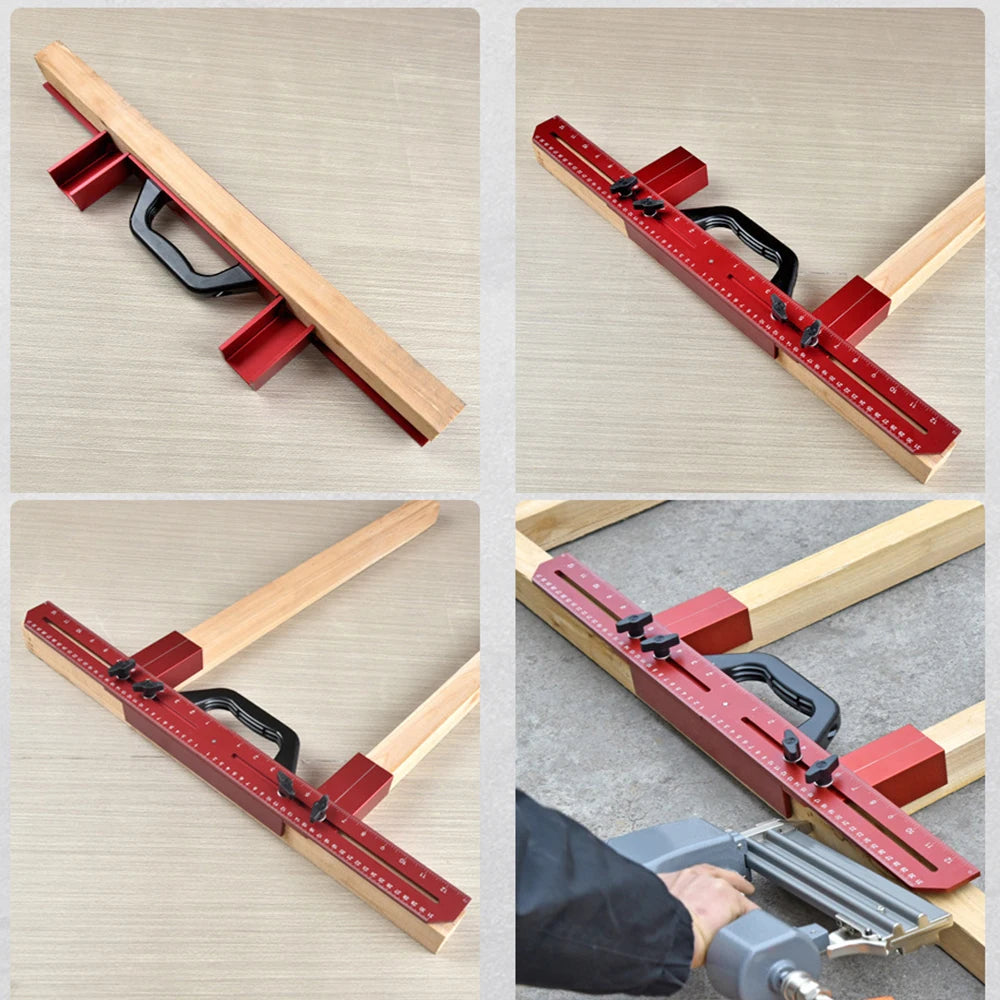

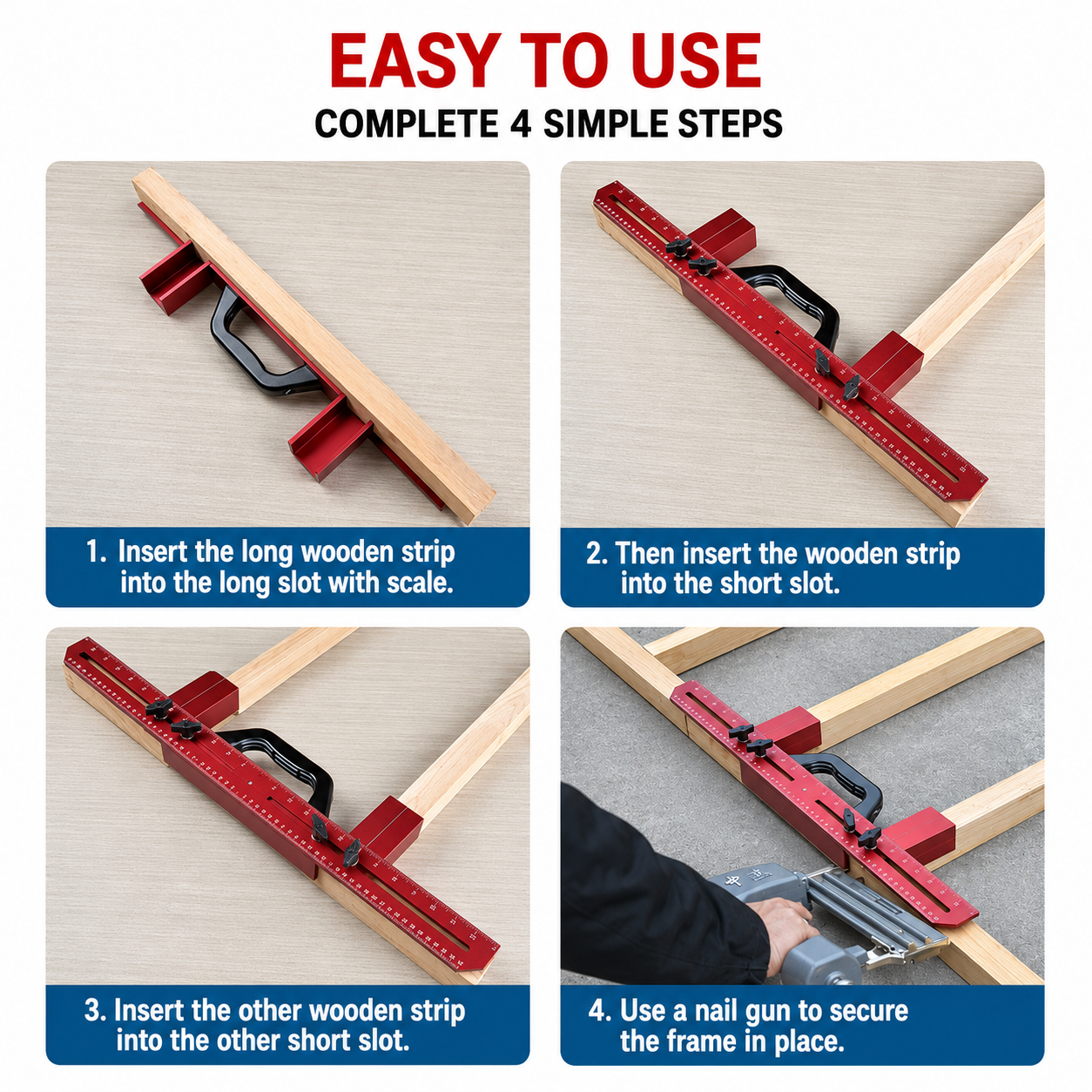

How It Works (4 Simple Steps)

1. Set the Base: Insert your long wooden runner into the main slotted channel.
2. Place the First Stud: Insert your first perpendicular wooden strip into the fixed short slot.
3. Adjust & Place the Second Stud: Slide the adjustable clamp head to your required measurement on the scale and insert the next wooden strip.

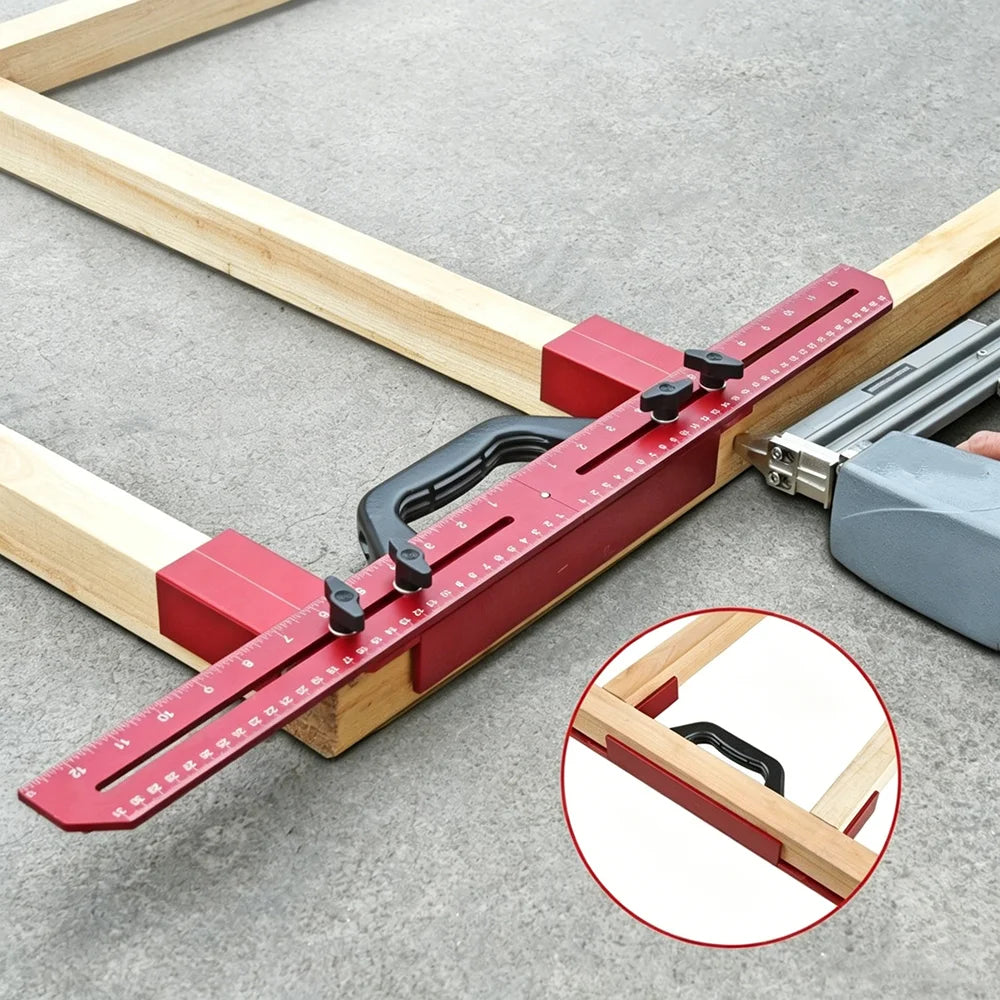

4. Secure: With the wood held perfectly square and at the exact spacing, use a nail gun or screws to secure the frame in place. Move the jig down the line and repeat.

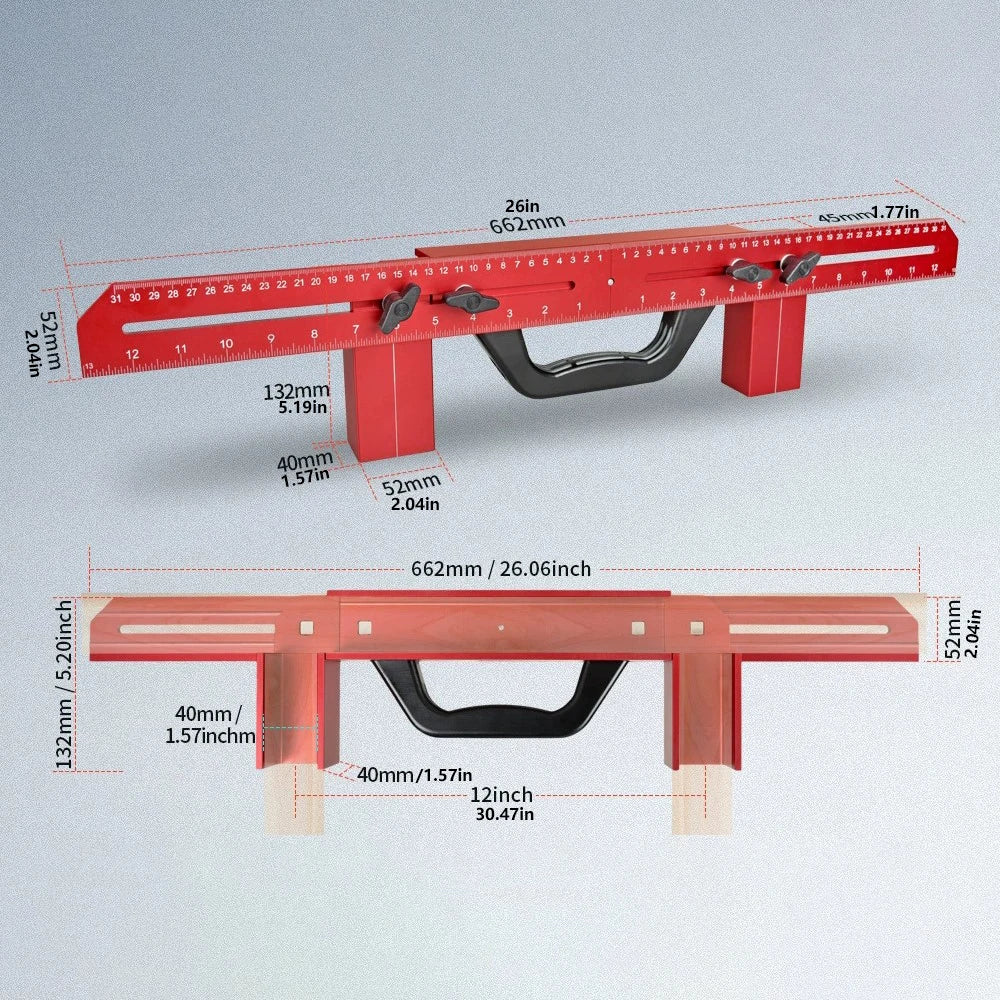

Product Specifications

• Maximum Expandable Range: 30 inches
• Base Ruler Length: 26.06 inches (662mm)
• Clamp Slot Width: 1.57 inches (40mm)
• Measurement Scale: Imperial (Inches) & Metric (Millimeters/Centimeters)
• Application: Wood frame splicing, ladder building, stud framing, temporary or permanent fixing.

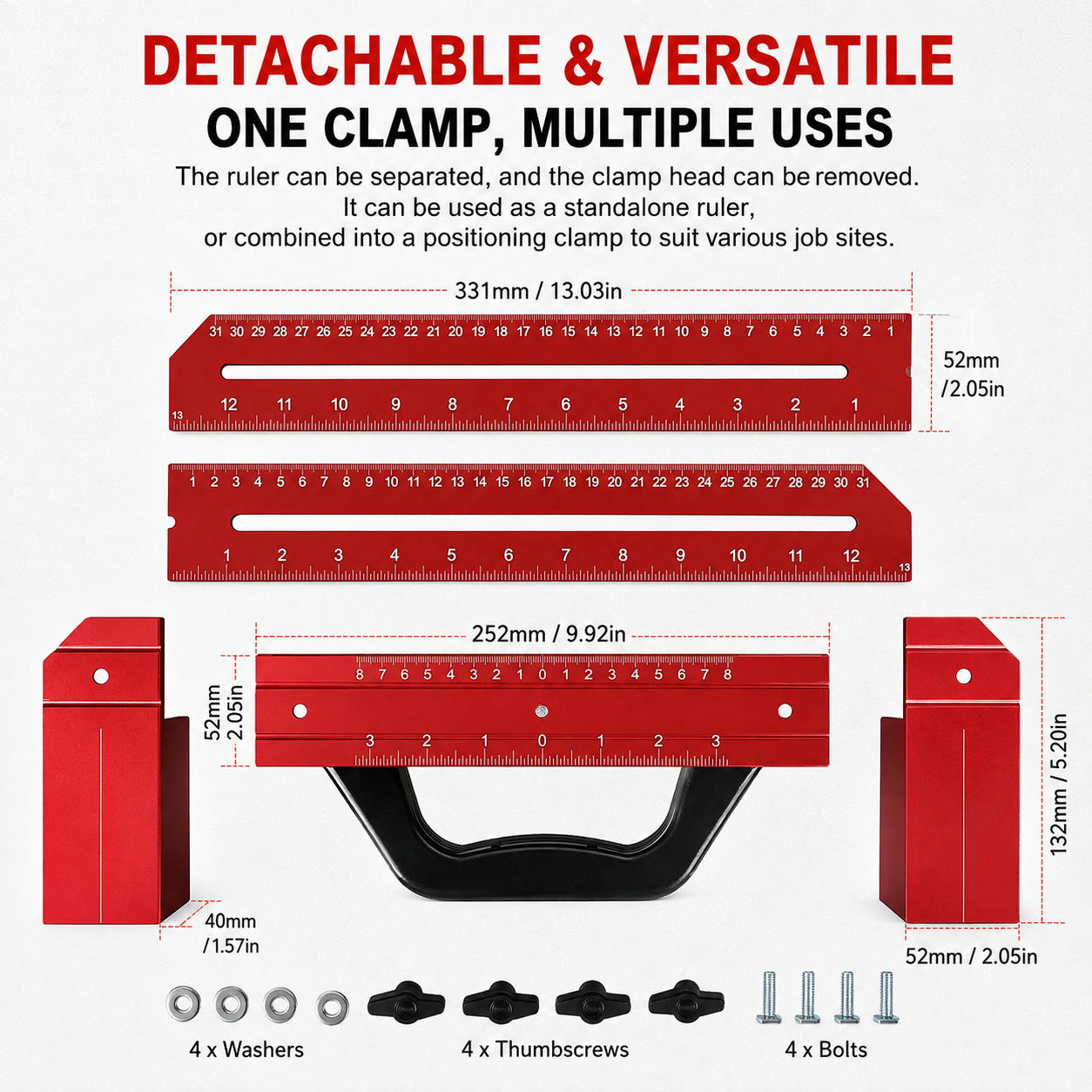

What’s Included in the Box

• 1 x Multi-piece Dual-Scale Ruler Set
• 2 x Positioning Clamp Heads
• 1 x Ergonomic Black Handle
• 4 x Easy-grip Thumbscrews
• 4 x Washers
• 4 x Securing Bolts
