TYIIPLUS™ 16" On-Center Stud Layout Tool | Adjustable Aluminum Framing Jig with Comfort Grip Handle

Build Faster. Frame Smarter.

Take the guesswork out of framing with the TYIIPLUS™ 16" On-Center Stud Layout Tool. Designed for professional contractors and serious DIY builders, this heavy-duty aluminum framing jig helps you create perfectly spaced wall studs, floor joists, ceiling joists, and roof rafters in a fraction of the time.

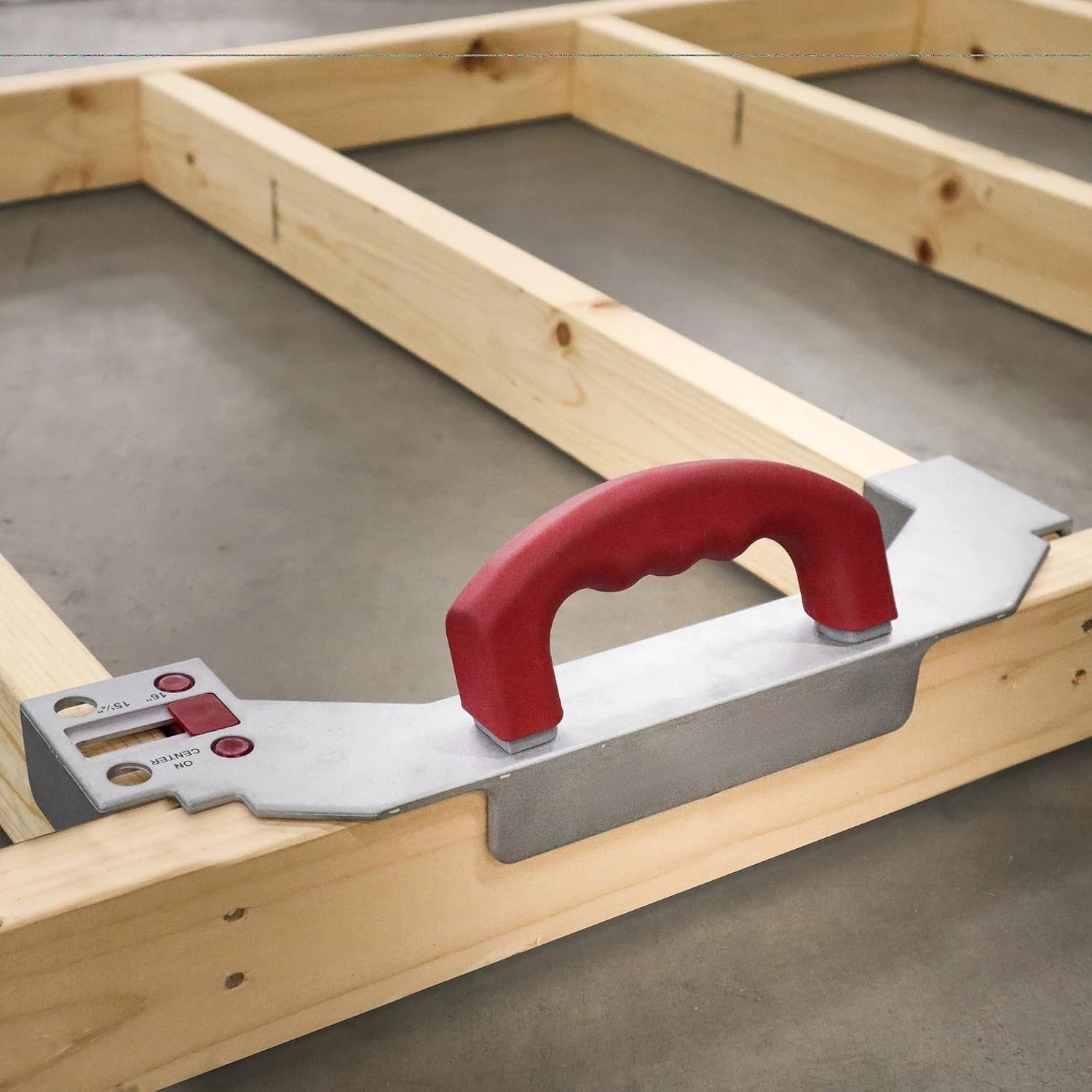

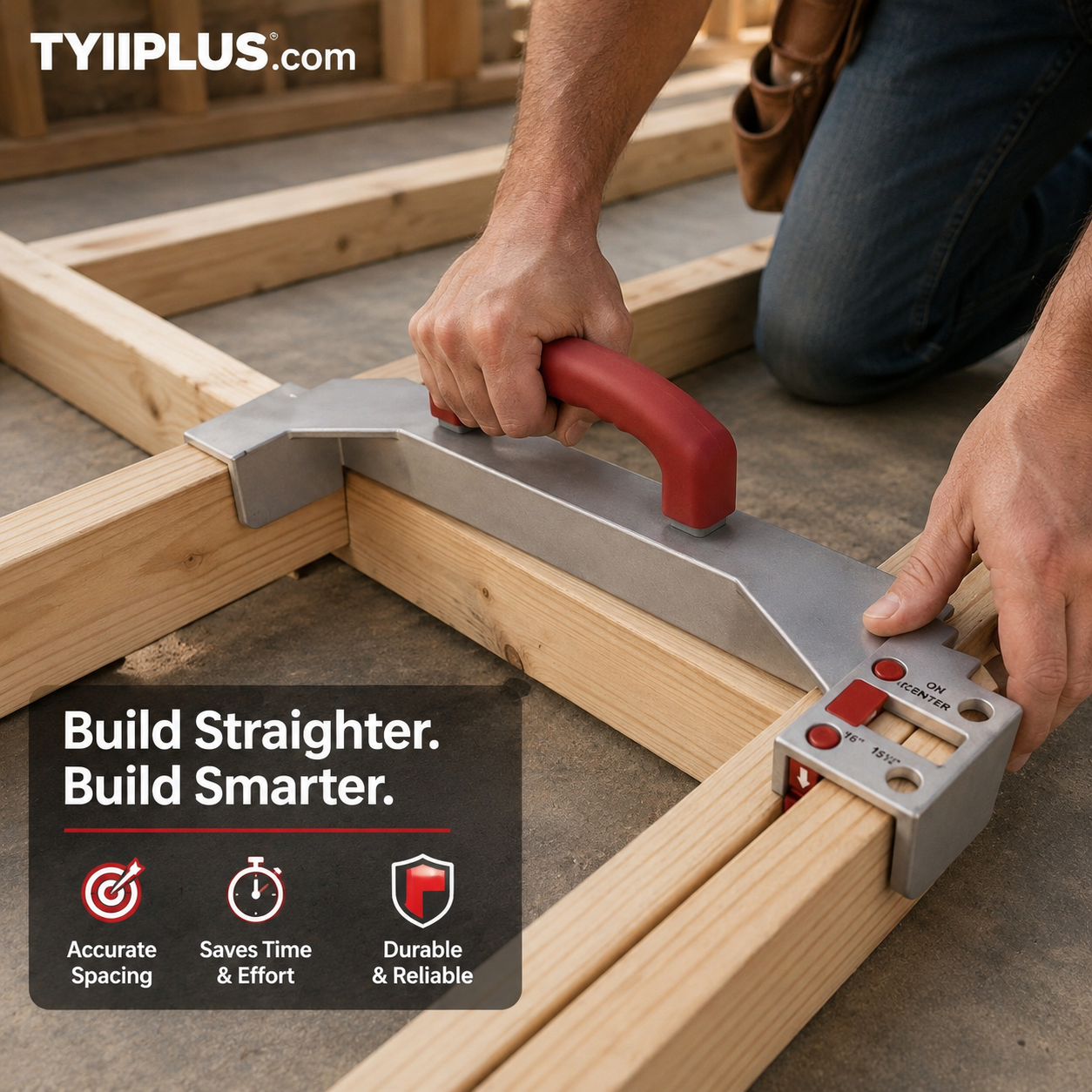

Simply position the tool, place your lumber, fasten it with nails or screws, and move to the next stud. No repeated measuring, marking, or calculating—just fast, consistent, professional results every time.

Whether you're building walls, decks, sheds, garages, or home additions, TYIIPLUS™ helps you frame with confidence.

Why You'll Love It

✔ Perfect 16" On-Center Layout

Achieve accurate 16-inch on-center spacing for walls, floors, ceilings, rafters, and joists without constantly reaching for a tape measure.

✔ Adjustable Wall Start Position

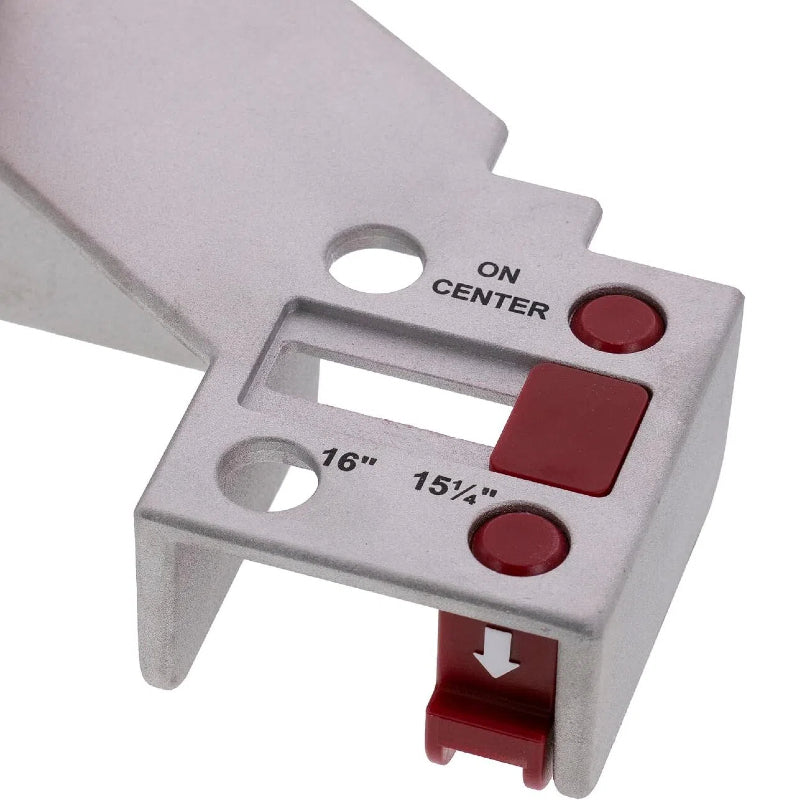

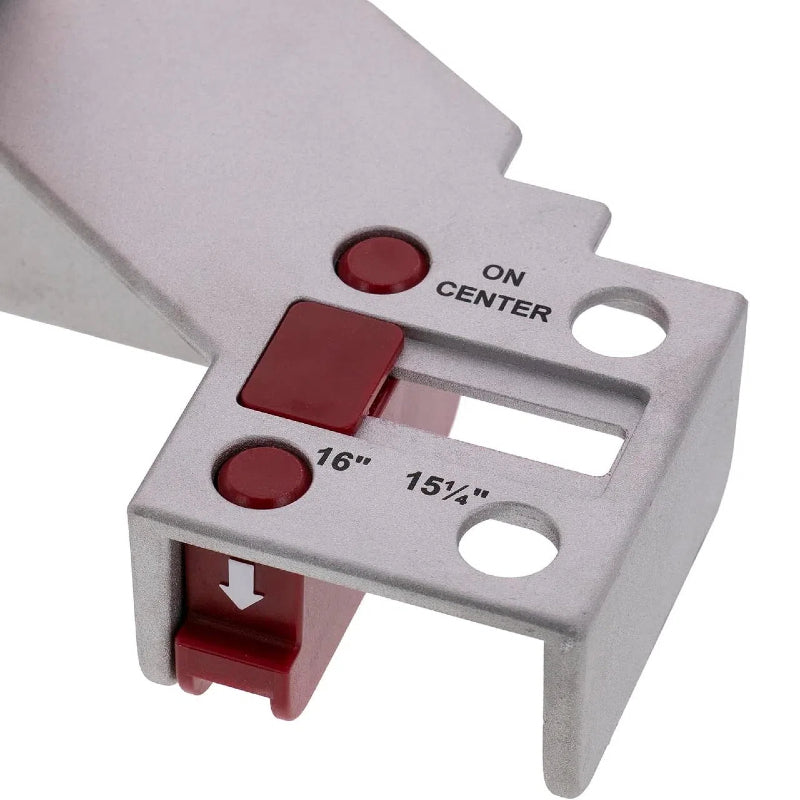

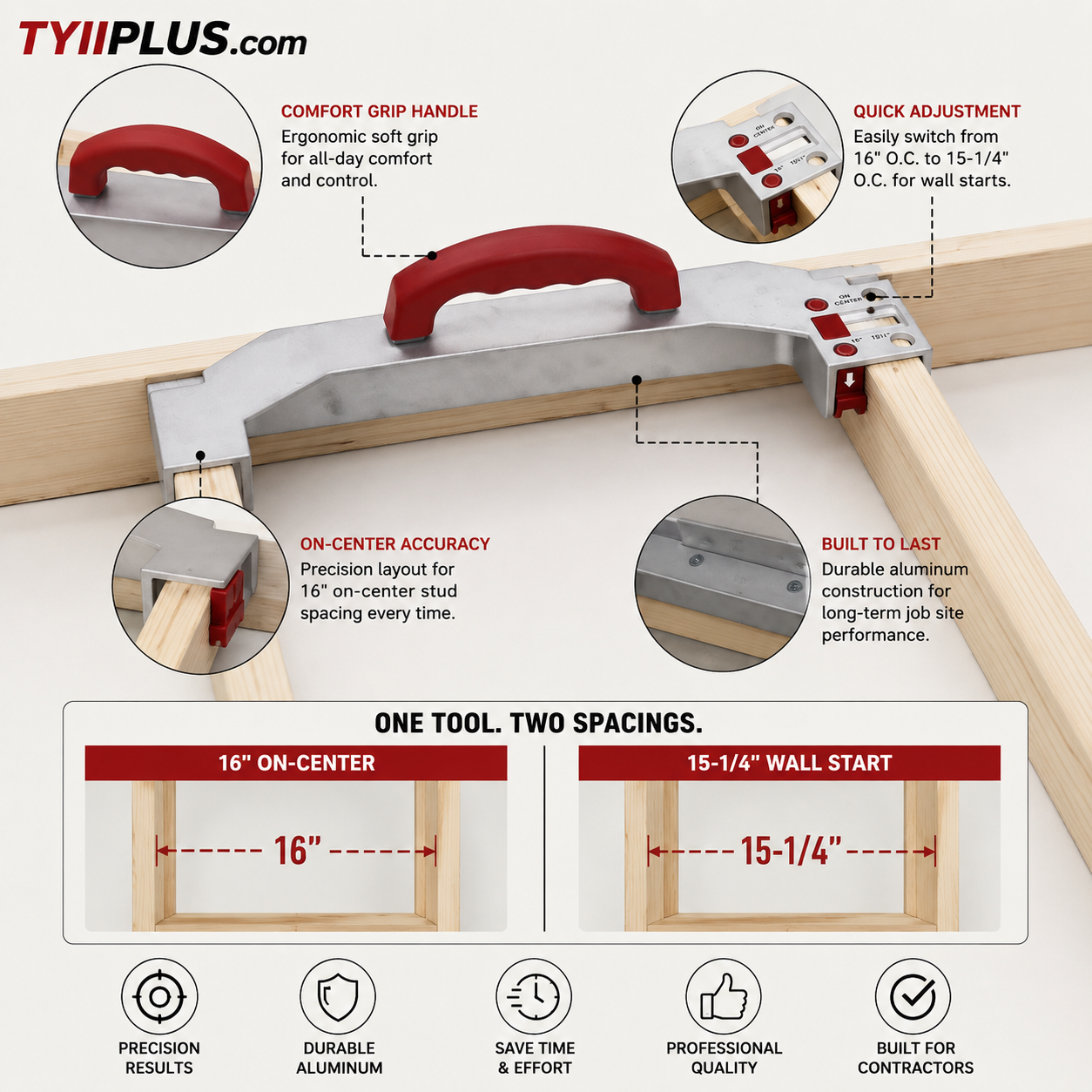

Instantly switch to 15-1/4" on-center spacing, allowing the first sheet of plywood or drywall to land perfectly on the center of the first stud.

✔ Finish Framing Faster

Reduce layout time dramatically by eliminating repeated measurements and improving consistency throughout the project.

✔ Heavy-Duty Aluminum Construction

Manufactured from premium aluminum alloy for exceptional durability while remaining lightweight enough for daily jobsite use.

✔ Comfortable Non-Slip Grip

The ergonomic rubber-coated handle provides excellent grip in wet or cold conditions while helping reduce hand fatigue during long projects.

✔ Built for Professionals & DIY Builders

Ideal for residential construction, remodeling, decks, sheds, garages, workshops, basements, and more.

Perfect For

• Wall Framing
• Floor Joists
• Ceiling Framing
• Roof Rafters
• Deck Construction
• Garages
• Sheds
• Home Remodeling
• Professional Contractors
• DIY Woodworking Projects

Key Features

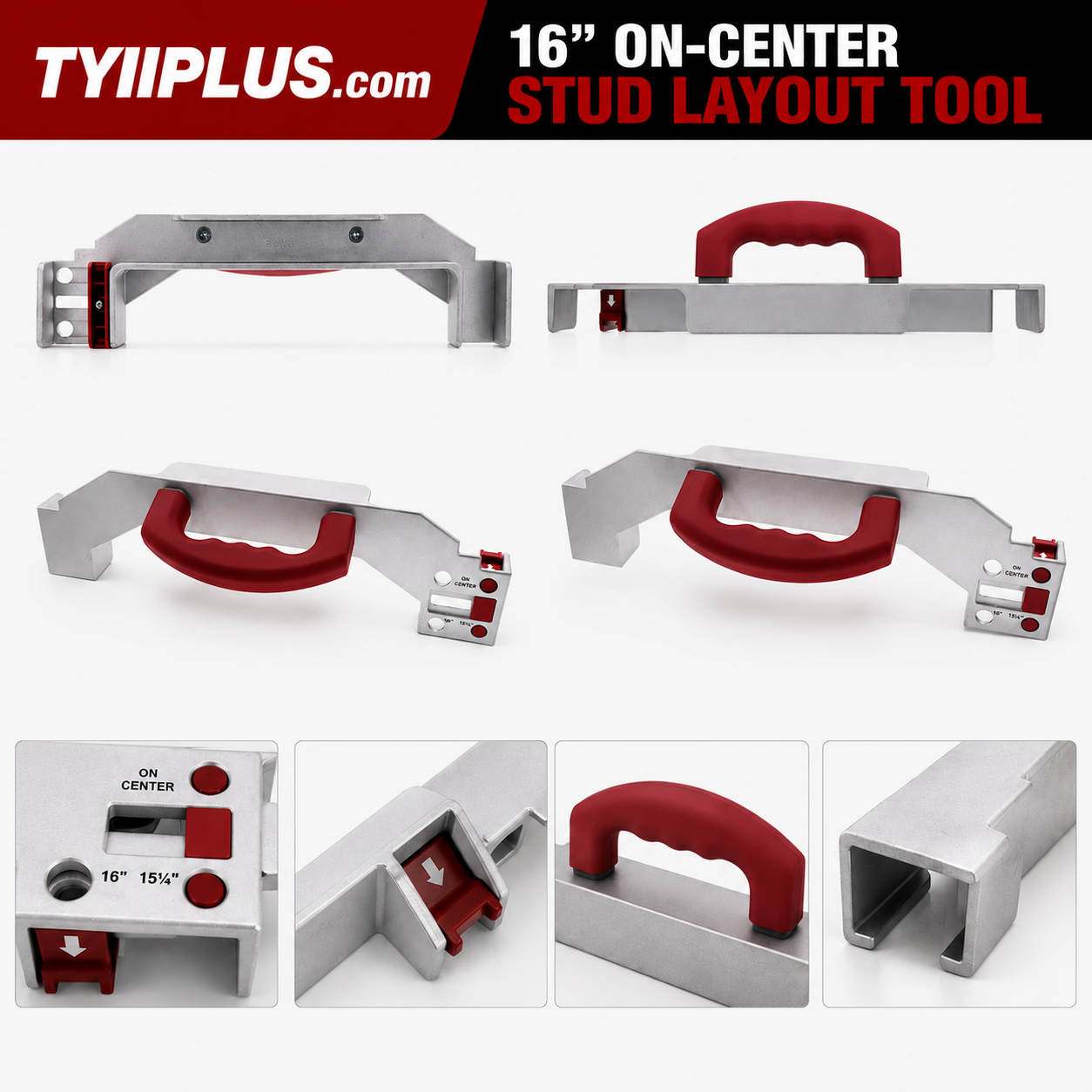

• Heavy-duty aluminum construction
• Precision 16" on-center stud spacing
• Quick adjustment to 15-1/4" wall start spacing
• Ergonomic insulated rubber handle
• Fast slide adjustment mechanism
• Lightweight and easy to carry
• Improves framing speed and accuracy
• Suitable for standard dimensional "2-by" lumber
• Designed for walls, floors, ceilings, decks, rafters, and joists

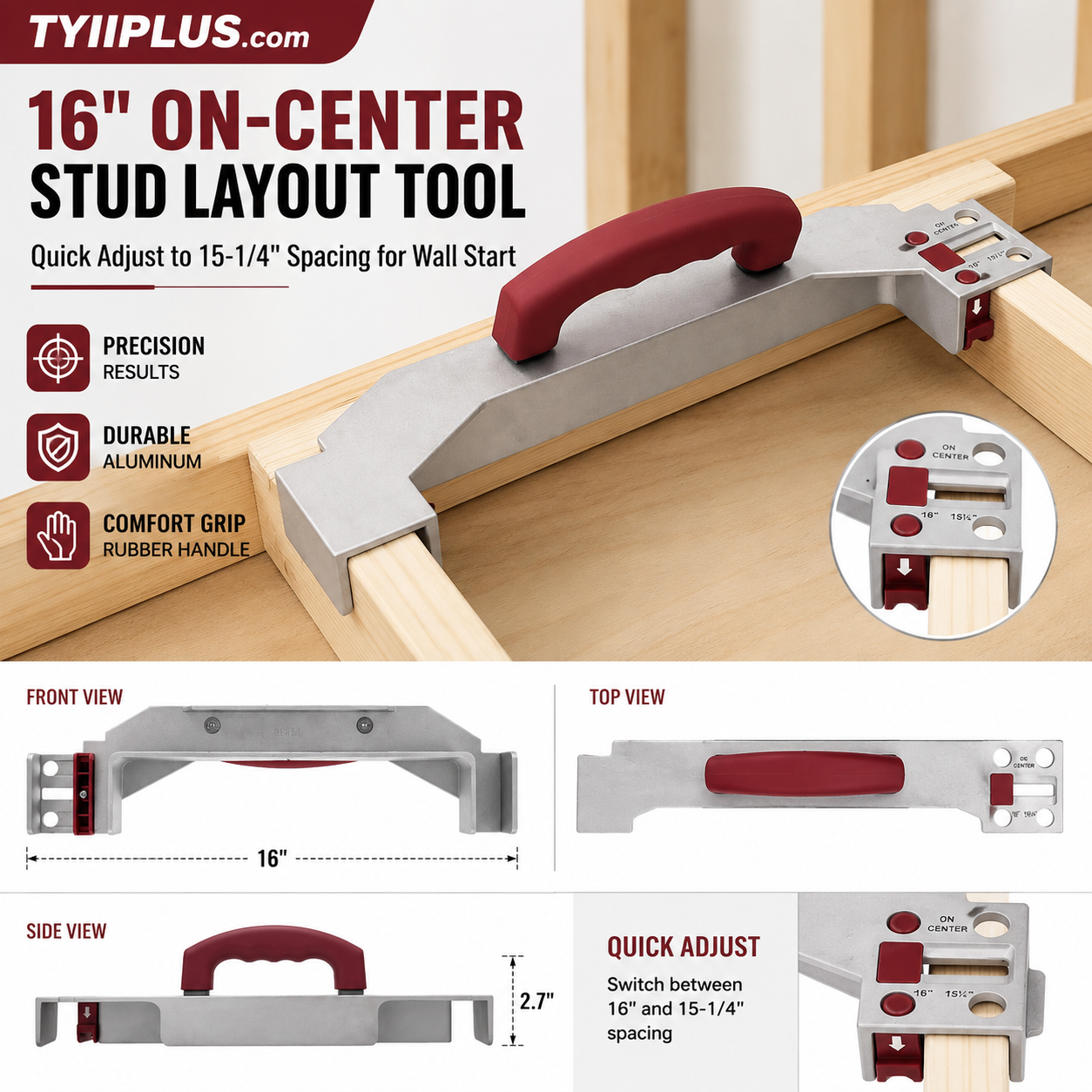

Specifications

• Material: Aluminum
• Primary Stud Spacing: 16 inch
• Secondary Stud Spacing: 15 1/4 inch
• Handle: Top-mounted, rubber insulated

Package Includes

• 1 × TYIIPLUS™ 16" On-Center Stud Layout Tool

Build with Precision. Save Time on Every Framing Job.

Whether you're framing a single wall or an entire structure, the TYIIPLUS™ Stud Layout Tool delivers consistent spacing, professional accuracy, and faster installation—helping you complete every project with confidence.
